旋启式止回阀
产品概述
产品介绍：

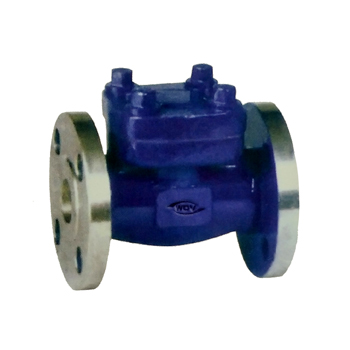

旋启式止回阀SWING-TYPE CHECK VALVE
应用规范
1、设计制造：按ANSIB16.34;API600;API602
2、结构长度：按ANSIB16.10;JIS B2002
3、连接端法兰尺寸：①150;300或600磅级按ANSIB16.5(RF)
4、阀门检验和试验：按API 598
5、结构特征：①B.B,旋启止回;有全径和缩径之分
6、材料：按ANSI/ASTM的规定
7、主体材料：A105;F5;F11;F22;304;304L;316;316L;LF2等

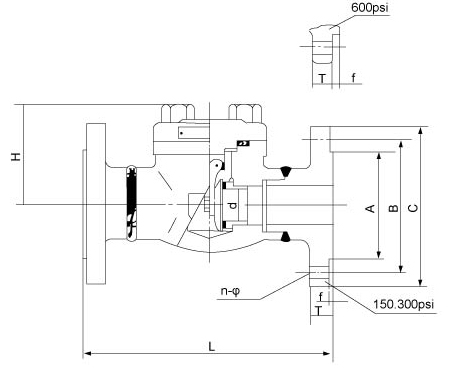

外形尺寸和重量
|
规格DN |
压力磅级 |
H(开) |
重量 |
||||||||||
|
英制 |
公制 |
缩径 |
全径 |
缩径 |
全径 |
||||||||
|
1/2 |
15 |
150 |
108 |
61 |
61 |
35 |
60.5 |
89 |
11.5 |
1.6 |
4-16 |
2.5 |
3.3 |
|
300 |
152 |
66.5 |
95 |
14.5 |
1.6 |
4-16 |
2.6 |
3.6 |
|||||
|
600 |
165 |
66.5 |
95 |
14.5 |
6.4 |
4-16 |
2.9 |
4.3 |
|||||
|
3/4 |
20 |
150 |
117 |
61 |
78 |
43 |
70 |
98 |
13 |
1.6 |
4-16 |
3.3 |
4.8 |
|
300 |
178 |
82.5 |
118 |
16 |
1.6 |
4-19 |
3.6 |
5.1 |
|||||
|
600 |
190 |
82.5 |
118 |
16 |
6.4 |
4-19 |
4.3 |
6.2 |
|||||
|
1 |
25 |
150 |
127 |
78 |
84 |
51 |
79.5 |
108 |
14.5 |
1.6 |
4-16 |
4.8 |
7.0 |
|
300 |
203 |
89 |
124 |
17.5 |
1.6 |
4-19 |
5.1 |
7.4 |
|||||
|
600 |
216 |
89 |
124 |
17.5 |
6.4 |
4-19 |
6.2 |
7.7 |
|||||
|
1¼ |
32 |
150 |
140 |
84 |
101 |
63 |
89 |
117 |
16 |
1.6 |
4-16 |
7.0 |
7.5 |
|
300 |
216 |
98.5 |
133 |
19.5 |
1.6 |
4-19 |
7.4 |
7.9 |
|||||
|
600 |
229 |
98.5 |
133 |
21 |
6.4 |
4-19 |
7.7 |
9.3 |
|||||
|
1½ |
40 |
150 |
165 |
101 |
120 |
73 |
98.5 |
127 |
17.5 |
1.6 |
4-16 |
7.5 |
11.3 |
|
300 |
229 |
114.5 |
156 |
21 |
1.6 |
4-22.5 |
7.9 |
11.7 |
|||||
|
600 |
241 |
114.5 |
156 |
22.5 |
6.4 |
4-22.5 |
9.3 |
13.2 |
|||||
|
2 |
50 |
150 |
203 |
120 |
133 |
92 |
120.5 |
152 |
19.5 |
1.6 |
4-19 |
11.3 |
13.6 |
|
300 |
267 |
127 |
165 |
22.5 |
1.6 |
8-19 |
11.7 |
16.8 |
|||||
|
600 |
292 |
127 |
165 |
25.5 |
6.4 |
8-19 |
13.2 |
20.5 |
|||||
