Steam-Water Separator GS13
Overview
Merits
Gas-water separators separate steam and drip in the steam on the basis of inner geometrical figure and principle of different flowing of steam and water,so as to increase steam dryness to assure operation.
1.Improvement of steam dryness,assurance of using temperature of steam using equipment,and improvement of heat efficiency of the equipment.
2.Separation of condensate in front of steam using equipment to prevent water hammer.
3.Adoptable for separation of separation of various kinds of gases and liquids.
|
Product model |
||||
|
Valve body materials |
PMA （Mpa） |
Maximum Allowable temperature |
Used medium |
|
|
GS3 GS1、GS7 GS13 |
1.6 1.6 2.5 |
220 420 420 |
Steam、Gas、Condensate water Steam、Gas、Condensate water Steam、Gas、Condensate water |
|
|
Part and component name |
Material |
|
Valve body、Valve cover |
Cast-iron、Carbon steel |
|
Filtration cover |
Stainless steel |

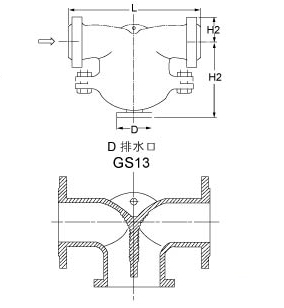

Product
model
Calibre
Flange
Thread/
welding
H1
H2
Vent
Pressure
change
range
(MPa)
Nominal
pressure
G13
65-80
400
-
100
190
DN25
0.1-2.5
2.5
GS13
100-125
400
-
110
205
DN25
0.1-2.5
2.5
GS13
150
450
-
140
320
DN25
0.1-2.5
2.5
GS13
200
450
-
165
435
DN40
0.1-2.5
2.5
GS13
250
550
-
203
517
DN40
0.1-2.5
2.5
Note
1.To offer joining size and flange standard.
2.To assure proper installation and clean out impurities inside.
Key specifications
| Valve body, Valve cover | Cast-iron, Carbon steel |
|---|---|
| Filtration cover | Stainless steel |
